Intelligent IoT Gateway Devices Solution Wireless Information Collection

  • Intelligent IoT Gateway Devices Solution Wireless Information Collection
Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type G200
Minimum Order Quantity Negotiable
Price EXW price US$ 100-200/ set
Packaging Details Customizable packaging
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 1000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Grade IP30 Size 142mm*142mm*35mm
Color Off White Material PC+ABS
Highlight

Intelligent IoT Gateway Devices

,

Wireless IoT Gateway Devices

,

Wireless IoT Gateway Solution
Leave a Message
Product Description

Brief Introduction​​​

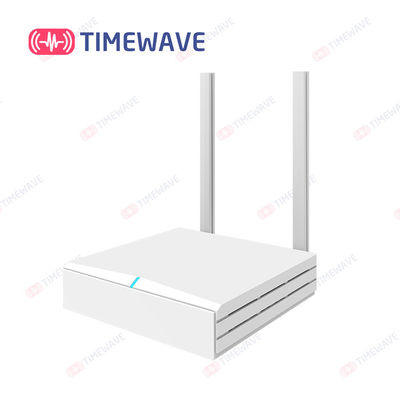

IoT Intelligent gateway G200 is a portable indoor gateway and complies with LoRaWAN protocol to provide low power, stable and secure wireless connectivity for devices and sensors.

IoT Intelligent gateway G200 adopts star topology deployment and provide WiFi, 4G or Ethernet connection to network server. The solution is used in a wide area of applications such as smart energy, smart cities and agricultural IoT.

IoT Intelligent gateway G200 meets the network requirements of long-range communications, strong anti-interference ability, high sensitivity and low power for many dispersed nodes to provide a low cost and high reliability indoor IoT solution.



Features

  • Low cost LoRa network deployment
  • Receiving sensitivity up to - 137dbm
  • Multi-gateway network alternate
  • Versatile Backhaul Options:4G/Ethernet/WiFi
  • Easy Maintenance



Interface Introduction

Intelligent IoT Gateway Devices Solution Wireless Information Collection 0

Port 1: LoRa Antenna (SMA-female)

Port 3: SIM Card Slot

Port 5: Ethernet (RJ45)

Port 7: 4G/WiFi Antenna (SMA-female)

Port 2: RESET

Port 4: Micro USB

Port 6: DC12V DC_IN





Specifications & parameters

LoRa Parameters
Frequency Band 470MHz/868MHz/915MHz/923MHz
Communication LoRaWAN, Star Network
Modulation LoRa
Mode Half duplex
Sensitivity -137dBm @SF12/BW 125KHz
Max Transmitter Power 17 dBm (Typical)
Channel & Bandwidth 125KHz/250KHz/500MHz Configurable
Interface Ethernet/WiFi/4G
Communication Distance Suburban 5Km, urban 3Km



Physical
IP Grade IP30
Size 142mm*142mm*35mm
Color Off white
Material PC+ABS
Input Voltage DC12V(11.0 VDC ~ 14.0 VDC)
Installation Desktop/Wall mount/Ceiling mount
Operating Temperature 0-60℃
Operating Humidity 0-90%RH
Thermal Methods Radiator grille



Hardware
Processor MIPS 650MHz
RAM 128MB RAM
Flash 16MB
WiFi QCA9513



Remote Management
Upgrade and Maintenance Remote monitoring of network status
Support remote firmware upgrade, configuration backup and recovery
